Stream Alteration and Flood Protection Approved for Bangerter Bridge

Anderson Engineering secured stream alteration and floodplain permits for CRS Engineers’ Bangerter Bridge project over Farmington Creek, Davis County, Utah. Services included environmental assessments, permit applications, and a bank stabilization plan. The project complied with NFIP standards and received timely approval, ensuring flood resilience and uninterrupted construction.

Services Provided

Client

CRS Engineers

Comprehensive environmental permitting ensured timely approval and flood-safe construction in Davis County.

Challenge

The project faced delays due to floodplain compliance and stream permitting requirements.

Solution

Anderson Engineering secured the required permits and implemented flood mitigation strategies.

Benefits

Timely approval and enhanced flood resilience ensured project success.

Common Questions. Expert Answers.

Quick Answers

What is a stream alteration permit, and why was it necessary for this project?
A stream alteration permit is required when construction or development activities may impact a natural watercourse. For the Bangerter Bridge project, this permit ensured that the bridge extension complied with environmental and regulatory standards, preventing adverse impacts on Farmington Creek.
Which agencies were involved in the permitting process?
The primary agencies involved were the Utah Division of Water Rights and the U.S. Army Corps of Engineers (USACE). Additionally, compliance with FEMA flood maps and NFIP regulations was necessary.
How did Anderson Engineering help secure the necessary permits?
Anderson Engineering prepared and submitted the joint permit application, which included environmental assessments, site-specific plans, and hydrological analyses. The team also coordinated with state and federal agencies to ensure timely approvals.
What flood mitigation measures were implemented?
The project included riprap installation along stream banks, regrading disturbed areas, and planting native vegetation to stabilize the banks and reduce erosion. These measures improved long-term flood resistance.
How did the project benefit the local community?
The project provided enhanced flood protection, ensuring the stability of the Bangerter Bridge and safeguarding nearby infrastructure. It also reduced flood damage risks and preserved the local ecosystem.
Can Anderson Engineering help with other environmental or flood-related projects in Utah?
Yes, Anderson Engineering specializes in environmental permitting, stream alteration projects, and flood management solutions across Utah. Contact us to learn how we can assist with your next project.

Discover the Full Scope of the Project

Gain insight into the decisions, challenges, and creative solutions that brought this project to life.

Screenshot 2025-02-03 at 3.04.59 PM

Challenge

CRS Engineers needed to extend the Bangerter Bridge over Farmington Creek within a regulated flood area. Without proper permits, construction risks included delays, legal challenges, and non-compliance with federal programs like NFIP. Flood management requirements added complexity, necessitating environmental assessments and approvals from state and federal agencies.

Regulatory approval delays due to flood management.

Risk of environmental non-compliance fines.

Potential construction disruptions from flood hazards.

Solution

Anderson Engineering prepared a joint application that USACE and the Utah Division of Water Rights reviewed. This included hydraulic analysis, environmental surveys, and stream bank stabilization plans. The solution provided regulatory approval and reduced flooding risks through riprap installation and native plantings along the banks.

Joint permit submission to federal and state agencies.

Bank stabilization using riprap and erosion control.

Environmental monitoring and restoration plans.

Benefits and Impacts

By securing stream alteration and floodplain permits, Anderson Engineering enabled construction to proceed without delays. The project avoided regulatory fines, improved flood resistance, and enhanced community safety near Farmington Creek.

Timely permit approvals prevent costly delays.

Long-term flood protection through bank stabilization.

Compliance with FEMA and NFIP regulations safeguarding future developments.

Ready to Turn Your Vision into Reality? Let's Talk

In-Depth Project Narrative

Stream Alteration and Flood Protection Approved for Bangerter Bridge.

Table of Contents

Introduction: Comprehensive Stream Alteration and Floodplain Permitting for Farmington Creek

The Bangerter Bridge Culvert Extension Project over Farmington Creek in Davis County, Utah, faced critical challenges with floodplain compliance and stream alteration permit regulations. As a vital component of local development, the project required adherence to state, federal, and FEMA flood management standards to ensure safe construction and long-term flood protection. Leveraging their extensive experience and expertise, Anderson Engineering provided comprehensive permitting services, including preparing a joint permit application for the Utah Division of Water Rights and U.S. Army Corps of Engineers (USACE) review. The project highlights Anderson Engineering’s ability to deliver environmental solutions that protect community infrastructure while enabling timely construction. Securing a stream alteration permit was essential for addressing the environmental impacts of the construction and ensuring compliance with local and federal regulations. Additionally, obtaining a stream alteration permit facilitated collaborative efforts with stakeholders and enhanced the project’s design considerations to minimize ecological impacts.


Problem: Navigating Strict Floodplain and Stream Permitting in a Special Flood Hazard Area

Complex Permitting and Environmental Risks Threatened Construction

The Bangerter Bridge Culvert Extension Project faced several unique challenges due to its location within a special flood hazard area (SFHA). This designation necessitated compliance with FEMA flood maps, NFIP regulations, and local floodplain management requirements. Without the proper permits and environmental assessments, the project risked delays, regulatory fines, and long-term flood risks to the community.

The stream alteration permit process was integral to our planning, ensuring that all environmental assessments were completed thoroughly. This proactive approach not only adhered to regulations but also fostered community trust and support for the project.

Each phase of the project required meticulous attention to the stream alteration permit guidelines, which helped us maintain compliance and avoid potential setbacks during construction.

Securing a stream alteration permit was essential for addressing the environmental impacts of the construction and ensuring compliance with local and federal regulations.

Key Challenges Faced by CRS Engineers:

  1. Strict regulatory oversight: The project required approval from multiple agencies, including the Utah Division of Water Rights and USACE, under Section 404 of the Clean Water Act.
  2. Flood protection concerns: Farmington Creek’s history of erosion and flooding threatened the proposed bridge’s stability and community safety.
  3. Environmental and cultural resource assessments: The site needed evaluations for potential impacts on archaeological resources, local ecosystems, and species of conservation concern.

Practical and Emotional Impacts:

  • Project delays: Potential construction halts could increase project costs and disrupt schedules.
  • Financial penalties: Non-compliance with floodplain management and permitting requirements risked fines and potential legal challenges.
  • Community safety: Through our comprehensive flood mitigation strategies, we have significantly reduced the risk of future infrastructure damage and public safety risks, ensuring a safer community for all.

Solution: Anderson Engineering’s Streamlined Permitting and Flood Management Strategy

Our comprehensive strategy included ensuring that the stream alteration permit application was prepared with all necessary documentation, which significantly expedited the review process.

Comprehensive Environmental Permitting and Restoration Solutions

Anderson Engineering provided a step-by-step, comprehensive solution to secure necessary permits and mitigate environmental risks. Their expertise in stream alteration and flood management in Utah ensured compliance while addressing project constraints efficiently.

Step 1: Initial Site Assessment and Regulatory Review

  • Conducted environmental assessments, including hydrological modeling and floodplain mapping, to evaluate potential impacts on the area.
  • Collaborated with CRS Engineers and local agencies to review state and federal requirements, ensuring all permits aligned with NFIP standards.

Step 2: Preparation and Submission of Joint Permit Application

The joint application, reviewed by the Utah Division of Water Rights and USACE, included:

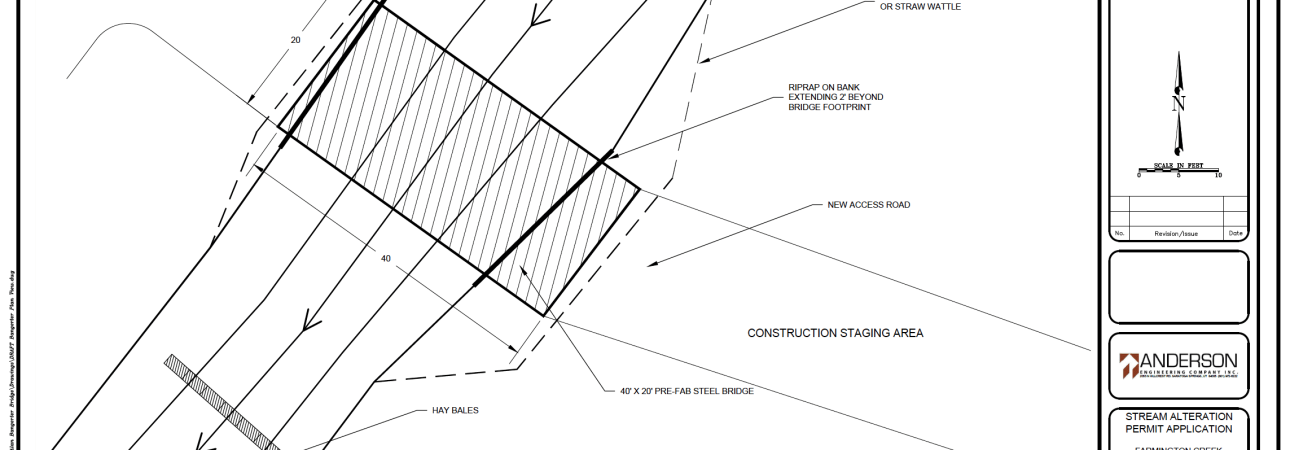

  • Site-specific drawings: Plan view and cross-sectional diagrams of the bridge design.
  • Cultural resource assessment: Conducted in compliance with Section 106 of the NHPA to evaluate archaeological and environmental risks.
  • Hydrological impact assessment: Addressed water flow and flood risk changes through stream bank stabilization techniques.
Application ComponentDetails Provided
Plan View DrawingsDetailed bridge layout with bank stabilization
Restoration PlanRiprap placement and native vegetation planting
Hydrological AnalysisStream flow impact assessment

Step 3: Implementing Flood Mitigation and Bank Stabilization Measures

  • Riprap installation: Placed along the stream banks to reduce erosion and improve flood resistance.
  • Grading and restoration: Disturbed areas were regraded and seeded with a riparian mix to restore the natural environment.
  • Ongoing monitoring: Established a monitoring plan to ensure the effectiveness of flood mitigation measures.

Step 4: Agency Coordination and Community Engagement

By prioritizing the stream alteration permit requirements, we ensured that community feedback was integrated into the design and execution phases.

  • Coordinated with local stakeholders and regulatory agencies to address the concerns of flood impacts and construction timing.
  • Provided regular updates to ensure transparency and avoid community opposition.

Ultimately, the successful acquisition of the stream alteration permit played a crucial role in establishing a framework for ongoing environmental compliance and monitoring.


Results and Benefits: Flood-Resilient Infrastructure and Timely Permit Approval

Successful Permitting and Long-Term Flood Management

Thanks to Anderson Engineering’s streamlined approach, the project achieved the following key results:

  1. Timely permit approval: The joint application received approval within the required timeframe, preventing construction delays.
  2. Enhanced flood resilience: Bank stabilization measures reduced erosion risks and provided long-term protection against flooding.
  3. Regulatory compliance: Our full adherence to NFIP, FEMA flood maps, and Section 404 Clean Water Act requirements has safeguarded the project from legal and financial risks, ensuring that we are operating within the highest standards of flood management.

We pride ourselves on our ability to navigate the complexities associated with a stream alteration permit, leveraging our expertise to maintain project momentum.

For those needing assistance with the stream alteration permit process, we offer specialized consultations to help navigate the regulatory landscape effectively.

Key Benefits to the Client and Community:

  • Cost savings: Avoided costly penalties and construction delays.
  • Improved community safety: Long-term flood mitigation ensures stable infrastructure and reduced flood damage risks.
  • Environmental protection: Restoration efforts preserved local ecosystems and prevented further stream degradation.

Contact Anderson Engineering for Environmental Permitting Expertise

Anderson Engineering is your trusted partner regarding Utah’s complex stream alteration projects or floodplain development. Our expertise in navigating state and federal environmental regulations ensures that your project will meet all permitting requirements on time and within budget.

Contact us today to schedule a consultation and discuss how we can help you achieve regulatory compliance and flood protection success.

Comprehensive Engineering Solutions

Full List of Services Provided For This Project

Wetlands Delineation and Permitting
Environmental Site Assessments
Permit Acquisition and Management
Biological and Ecological Services
As-Built Surveys
Floodplain Surveys
Topographic Surveys

Disclaimer: This summary includes AI-generated content and project-specific details that may not apply to your project. For personalized advice, contact Anderson Engineering—we’re here to help!
